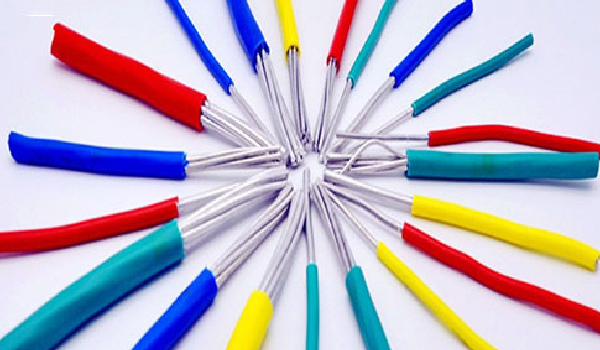

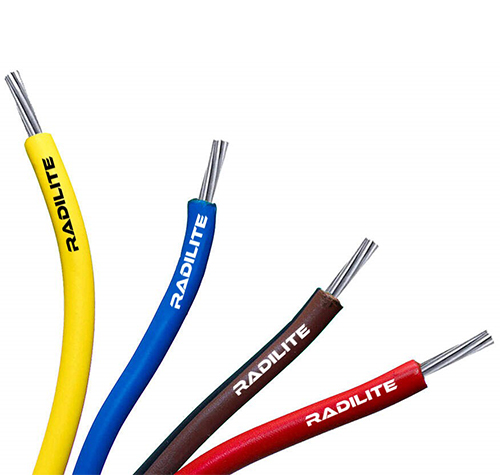

RADILITE Single Core Aluminium Cables

RADILITE is one of the most unique & versatile cable product. An example of our fine workmanship is our flexible cables for electrical connections. Widely accepted and acclaimed, it enjoys reputation of being the best in industry.

Construction

Conductor - Aluminium are stranded round or compact Cl. 2 as per IS 8130

Insulation -Virgin grade natural PVC (type A, C and D).

Standard- IS:694 / 2010

Sizes- 2.50 sq.mm. to 25.0 sq.mm.

Cable Code: AY

Colours available: Black.

*Packing available in 90 mtr and 450 mtr coils.

Salient features

  • Bunching of aluminum in uniform lay and dia., that ensures easy stripping and minimum losses.
  • Insulation formulated for high current capacity for customer safety.
  • Indigenously developed PVC compound formulated from finest ingredients designed for higher thermal resistance.
  • indigenously developed PVC compound formulated from finest ingredients giving best heat resistant properties.
  • High tensile strength of PVC for good load capacity.
  • PVC formulated to ensure NO SPREAD OF FIRE.
  • Highly insulation resistance and volume resistivity ensuring no leakage of current.
  • Highly durable cables with oil resistance.

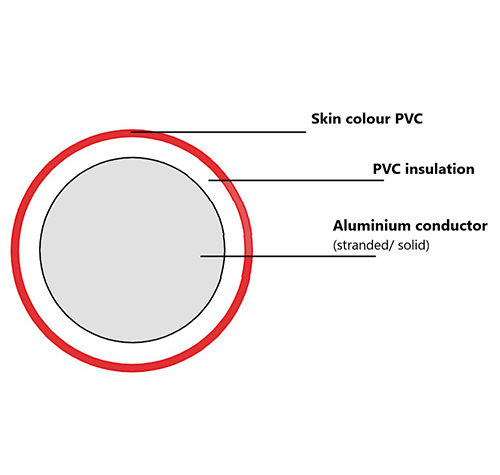

Cross – sectional view of RADILITE SINGLE CORE ALUMINIUM CABLES:

Technical data sheet for RADILITE SINGLE CORE ALUMINIUM CABLES:

Conductor area (sq.mm.) No. of strands/size (mm.) Max. DC resistance at 200 c (ohm/km) Insulation thickness nominal (mm.) Cable dia. (mm.) Current carrying capacity (Amps.)
2.5 sq.mm. 7/0.7 12.10 0.8 3.80 18
4.0 sq.mm. 7/0.85 7.41 0.8 4.30 23
6.0 sq.mm. 7/1.04 4.61 1.0 5.00 30
10.0 sq.mm. 7/1.35 3.08 1.20 6.50 40
16.0 sq.mm. 7/1.70 1.91 1.20 7.50 55
25.0 sq.mm. 7/2.13 1.20 1.50 9.20 70

Application :

PVC insulated aluminium twin flat cables are mainly used in agriculture and for electrical connections from main High voltage line and many other electrical machines.
