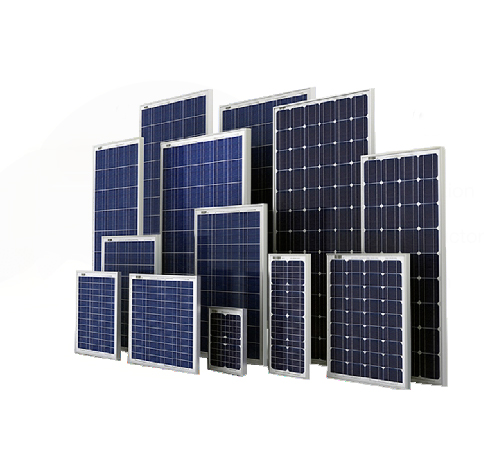

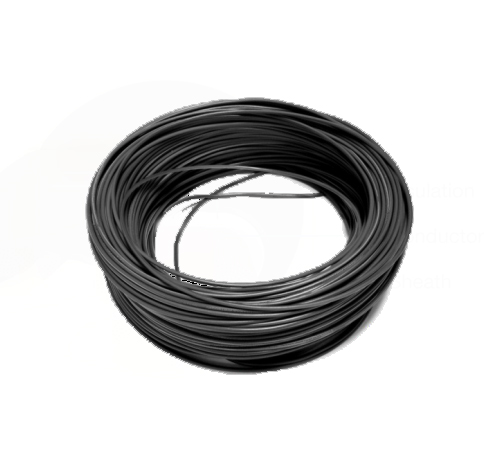

Solar Cable Is The Interconnection Cable Used In Photovoltaic Power Generation. A Solar Cable Interconnects Solar Panels And Other Electrical Components In The Photovoltaic System. Solar Cables Are Designed To Be Uv Resistant And Weather Resistant. It Can Be Used With In A Large Temperature Range And Are Generally Laid Outside. Sizes Of Solar Cables From 2.50 SQMM to 25 SQMM. SOLAR Cable is available in three types of varieties:
Voltage Rating : AC-0.6 / 1.1 KV
Test Voltage : AC 6 KV / DC KV (15 min.)
Max. Permissible Operating Voltage in AC Systems : 0.7 / 1.2 KV Max. Permissible Operating Voltage in DC System
Max. PV System Voltage : DC upto 2.0 KV possible
Spark Test: 6000 Vac (8400 Vdc)

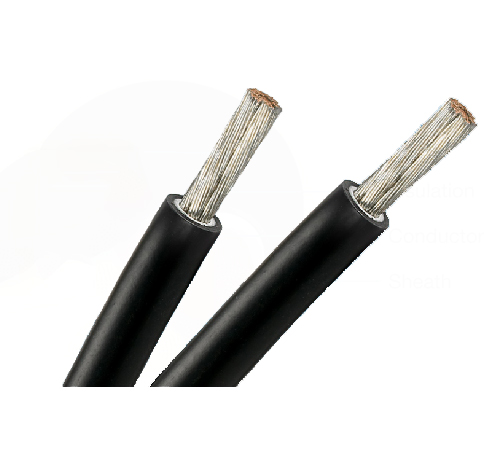

Conductor: Fine Wire Tinned Copper Conductor according to BS EN 60228:2005 cl. 5
Insulation: UV resistant cross linkable, halogen free, flame retardant compound for core insulation.
Care indentification: Red, Black or Natural
Shealth: UV resistant, cross linkable, halogen free,
flame retardant compoung for Shealth over insulation.
| MINAL AREA OF CONDUCTOR | As per standard 2Pfg 1169 | As Per Standard 2Pfg 1990 and EN50618 | In Air Single Cable | On Surface single core | On surface Two cables Adjustment | Max. Conductor Resistance per KM at 200C |
|---|---|---|---|---|---|---|
| sq.mm | mm | mm | amp | amp | amp | ahms |
| 2.50 | 5.0 | 6.5 | 41 | 39 | 33 | 8.210 |
| 4.00 | 5.5 | 7.0 | 55 | 52 | 44 | 5.090 |
| 6.00 | 6.0 | 7.5 | 77 | 67 | 57 | 3.390 |
| 10.00 | 7.0 | 8.6 | 98 | 93 | 79 | 1.950 |
| 16.00 | 8.0 | 9.9 | 132 | 125 | 107 | 1.240 |
| 25.00 | 10.5 | 11.4 | 176 | 167 | 142 | 0795 |
